PartSegCore base¶
On this page there are described base classes of PartSegCore module
.algorithm_describe_base¶
- class PartSegCore.algorithm_describe_base.AlgorithmDescribeBase[source]¶
This is abstract class for all algorithm exported to user interface. Based on get_name and get_fields methods the interface will be generated For each group of algorithm base abstract class will add additional methods
- class PartSegCore.algorithm_describe_base.AlgorithmDescribeBaseMeta(name, bases, attrs, **kwargs)[source]¶
- exception PartSegCore.algorithm_describe_base.AlgorithmDescribeNotFound[source]¶
When algorithm description not found
- class PartSegCore.algorithm_describe_base.AlgorithmProperty(name, user_name, default_value, options_range=None, possible_values=None, value_type=None, help_text='', per_dimension=False, mgi_options=None, **kwargs)[source]¶
This class is used to verbose describe algorithm parameters
- pydantic model PartSegCore.algorithm_describe_base.AlgorithmSelection[source]¶
Base class for algorithm selection. For given algorithm there should be Register instance set __register__ class variable.
Show JSON schema
{ "title": "AlgorithmSelection", "description": "Base class for algorithm selection.\nFor given algorithm there should be Register instance set __register__ class variable.", "type": "object", "properties": { "name": { "title": "Name", "type": "string" }, "values": { "anyOf": [ { "type": "object" }, { "$ref": "#/$defs/BaseModel" } ], "title": "Values" }, "class_path": { "default": "", "title": "Class Path", "type": "string" } }, "$defs": { "BaseModel": { "properties": {}, "title": "BaseModel", "type": "object" } }, "additionalProperties": false, "required": [ "name", "values" ] }
- Config:
extra: str = forbid
smart_union: bool = True
- Fields:
- classmethod register(value, replace=False, old_names=None)[source]¶
Function for registering
AlgorithmDescribeBase
based algorithms :type value:TypeVar
(AlgorithmType
, bound=Type
[AlgorithmDescribeBase
]) :param value: algorithm to register :type replace: :param replace: replace existing algorithm, be patient with :type old_names:Optional
[List
[str
]] :param old_names: list of old names for registered class- Return type:
TypeVar
(AlgorithmType
, bound=Type
[AlgorithmDescribeBase
])
- pydantic model PartSegCore.algorithm_describe_base.ROIExtractionProfile[source]¶
- Variables:
Show JSON schema
{ "title": "ROIExtractionProfile", "description": ":ivar str ~.name: name for segmentation profile\n:ivar str ~.algorithm: Name of algorithm\n:ivar dict ~.values: algorithm parameters", "type": "object", "properties": { "name": { "title": "Name", "type": "string" }, "algorithm": { "title": "Algorithm", "type": "string" }, "values": { "title": "Values" } }, "additionalProperties": false, "required": [ "name", "algorithm", "values" ] }
- Config:
extra: str = forbid
- Fields:
- class PartSegCore.algorithm_describe_base.ROIExtractionProfileMeta(name, bases, attrs, **kwargs)[source]¶
- class PartSegCore.algorithm_describe_base.Register(*args, class_methods=None, methods=None, suggested_base_class=None, **kwargs)[source]¶
Dict used for register
AlgorithmDescribeBase
classes. All registers from PartSeg.PartSegCore.register are this :type class_methods: :param class_methods: list of method which should be implemented as class method it will be checked during add as args or withRegister.register()
method :type methods: :param methods: list of method which should be instance method- get_default()[source]¶
Calculate default algorithm name for given dict.
- Return type:
- Returns:
name of algorithm
- register(value, replace=False, old_names=None)[source]¶
Function for registering
AlgorithmDescribeBase
based algorithms :type value:TypeVar
(AlgorithmType
, bound=Type
[AlgorithmDescribeBase
]) :param value: algorithm to register :type replace:bool
:param replace: replace existing algorithm, be patient with :type old_names:Optional
[List
[str
]] :param old_names: list of old names for registered class
- PartSegCore.algorithm_describe_base.base_model_to_algorithm_property(obj)¶
Convert pydantic model to list of AlgorithmPropert nad strings.
- Parameters:
obj (
Type
[BaseModel
])- Return type:
- Returns:
.image_operations¶
- class PartSegCore.image_operations.NoiseFilterType(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)[source]¶
Bases:
Enum
- class PartSegCore.image_operations.RadiusType(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)[source]¶
Bases:
Enum
If operation should be performed and if on each layer separately on globally
- NO = 0¶
No operation
- R2D = 1¶
operation in each layer separately
- R3D = 2¶
operation on whole stack
- PartSegCore.image_operations.apply_filter(filter_type, image, radius, layer=True)[source]¶
Apply operation selected by filter type to image.
- Parameters:
filter_type (NoiseFilterType)
image (np.ndarray)
radius (float)
layer (bool)
- Returns:
image after operation
- Return type:
np.ndarray
- PartSegCore.image_operations.dilate(image, radius, layer=True)[source]¶
Dilate of image.
- Parameters:
image – image to apply dilation
radius – dilation radius
layer – if operation should be run on each layer separately
- Returns:
- PartSegCore.image_operations.erode(image, radius, layer=True)[source]¶
Erosion of image
- Parameters:
image – image to apply erosion
radius – erosion radius
layer – if operation should be run on each layer separately
- Returns:
.json_hooks¶
.io_utils¶
- class PartSegCore.io_utils.LoadBase[source]¶
Bases:
_IOBase
,ABC
- classmethod get_fields()[source]¶
This function return list of parameters needed by algorithm. It is used for generate form in User Interface
- Returns:
list of algorithm parameters and comments
- abstract classmethod load(load_locations, range_changed=None, step_changed=None, metadata=None)[source]¶
Function for load data
- Parameters:
load_locations (
List
[Union
[str
,BytesIO
,Path
]]) – list of files to loadrange_changed (
Optional
[Callable
[[int
,int
],Any
]]) – callback function for inform about number of steps to be donestep_changed (
Optional
[Callable
[[int
],Any
]]) – callback function for report that single step has been donemetadata (
Optional
[dict
]) – additional information needed by function. Like default spacing for load image
- Return type:
- Returns:
Project info or list of project info
- class PartSegCore.io_utils.LoadPlanExcel[source]¶
Bases:
LoadBase
- classmethod get_name()[source]¶
Algorithm name. It will be used during interface generating and in registering to proper
PartSeg.PartSegCore.algorithm_describe_base.Register
.- Return type:
- Returns:
name of algorithm
- classmethod load(load_locations, range_changed=None, step_changed=None, metadata=None)[source]¶
Function for load data
- Parameters:
load_locations (
List
[Union
[str
,BytesIO
,Path
]]) – list of files to loadrange_changed (
Optional
[Callable
[[int
,int
],Any
]]) – callback function for inform about number of steps to be donestep_changed (
Optional
[Callable
[[int
],Any
]]) – callback function for report that single step has been donemetadata (
Optional
[dict
]) – additional information needed by function. Like default spacing for load image
- Returns:
Project info or list of project info
- class PartSegCore.io_utils.LoadPlanJson[source]¶
Bases:
LoadBase
- classmethod get_name()[source]¶
Algorithm name. It will be used during interface generating and in registering to proper
PartSeg.PartSegCore.algorithm_describe_base.Register
.- Return type:
- Returns:
name of algorithm
- classmethod load(load_locations, range_changed=None, step_changed=None, metadata=None)[source]¶
Function for load data
- Parameters:
load_locations (
List
[Union
[str
,BytesIO
,Path
]]) – list of files to loadrange_changed (
Optional
[Callable
[[int
,int
],Any
]]) – callback function for inform about number of steps to be donestep_changed (
Optional
[Callable
[[int
],Any
]]) – callback function for report that single step has been donemetadata (
Optional
[dict
]) – additional information needed by function. Like default spacing for load image
- Returns:
Project info or list of project info
- class PartSegCore.io_utils.LoadPoints[source]¶
Bases:
LoadBase
- classmethod get_fields()[source]¶
This function return list of parameters needed by algorithm. It is used for generate form in User Interface
- Return type:
- Returns:
list of algorithm parameters and comments
- classmethod get_name()[source]¶
Algorithm name. It will be used during interface generating and in registering to proper
PartSeg.PartSegCore.algorithm_describe_base.Register
.- Return type:
- Returns:
name of algorithm
- classmethod load(load_locations, range_changed=None, step_changed=None, metadata=None)[source]¶
Function for load data
- Parameters:
load_locations (
List
[Union
[str
,BytesIO
,Path
]]) – list of files to loadrange_changed (
Optional
[Callable
[[int
,int
],Any
]]) – callback function for inform about number of steps to be donestep_changed (
Optional
[Callable
[[int
],Any
]]) – callback function for report that single step has been donemetadata (
Optional
[dict
]) – additional information needed by function. Like default spacing for load image
- Return type:
- Returns:
Project info or list of project info
- class PartSegCore.io_utils.PointsInfo(file_path, points)[source]¶
Bases:
NamedTuple
- class PartSegCore.io_utils.SaveBase[source]¶
Bases:
_IOBase
,ABC
- class PartSegCore.io_utils.SaveMaskAsTiff[source]¶
Bases:
SaveBase
- classmethod get_fields()[source]¶
This function return list of parameters needed by algorithm. It is used for generate form in User Interface
- Returns:
list of algorithm parameters and comments
- classmethod get_name()[source]¶
Algorithm name. It will be used during interface generating and in registering to proper
PartSeg.PartSegCore.algorithm_describe_base.Register
.- Returns:
name of algorithm
- class PartSegCore.io_utils.SaveROIAsNumpy[source]¶
Bases:
SaveBase
- classmethod get_fields()[source]¶
This function return list of parameters needed by algorithm. It is used for generate form in User Interface
- Returns:
list of algorithm parameters and comments
- classmethod get_name()[source]¶
Algorithm name. It will be used during interface generating and in registering to proper
PartSeg.PartSegCore.algorithm_describe_base.Register
.- Returns:
name of algorithm
- class PartSegCore.io_utils.SaveROIAsTIFF[source]¶
Bases:
SaveBase
- classmethod get_fields()[source]¶
This function return list of parameters needed by algorithm. It is used for generate form in User Interface
- Returns:
list of algorithm parameters and comments
- classmethod get_name()[source]¶
Algorithm name. It will be used during interface generating and in registering to proper
PartSeg.PartSegCore.algorithm_describe_base.Register
.- Returns:
name of algorithm
- class PartSegCore.io_utils.SaveScreenshot[source]¶
Bases:
SaveBase
- classmethod get_fields()[source]¶
This function return list of parameters needed by algorithm. It is used for generate form in User Interface
- Return type:
- Returns:
list of algorithm parameters and comments
- classmethod get_name()[source]¶
Algorithm name. It will be used during interface generating and in registering to proper
PartSeg.PartSegCore.algorithm_describe_base.Register
.- Return type:
- Returns:
name of algorithm
- class PartSegCore.io_utils.SegmentationType(value, names=None, *, module=None, qualname=None, type=None, start=1, boundary=None)[source]¶
Bases:
Enum
- PartSegCore.io_utils.find_problematic_entries(data)[source]¶
Find top nodes with
"__error__"
key. If node found then its children is not checked.- Parameters:
data (
Any
) – data to be checked- Return type:
- Returns:
top level entries with “__error__” key
- PartSegCore.io_utils.find_problematic_leafs(data)[source]¶
Find bottom nodes with
"__error__"
key. If any children has"__error__"
then such node is not returned.- Parameters:
data (
Any
) – data to be checked.- Return type:
- Returns:
bottom level entries with “__error__” key
- PartSegCore.io_utils.load_matadata_part(data)¶
Load serialized data. Get valid entries.
.mask_create¶
- pydantic model PartSegCore.mask_create.MaskProperty[source]¶
Bases:
BaseModel
Description of creation mask from segmentation
- Variables:
~.dilate (RadiusType) – Select dilation mode.
~.dilate_radius (int) – Radius of dilation calculate with respect of image spacing.
~.fill_holes (RadiusType) – Select if fill holes and if it should be done in 2d or 3d.
~.max_holes_size (int) – Maximum holes size if positive. Otherwise fill all holes.
~.save_components (bool) – If mask should save components of segmentation or set to 1.
~.clip_to_mask (bool) – If resulted should be clipped to previous mask (if exist). Useful for positive dilate radius
~.reversed_mask (bool) – If mask should be reversed (region which are not part of segmentation)
Show JSON schema
{ "title": "MaskProperty", "description": "Description of creation mask from segmentation\n\n:ivar RadiusType ~.dilate: Select dilation mode.\n:ivar int ~.dilate_radius: Radius of dilation calculate with respect of image spacing.\n:ivar RadiusType ~.fill_holes: Select if fill holes and if it should be done in 2d or 3d.\n:ivar int ~.max_holes_size: Maximum holes size if positive. Otherwise fill all holes.\n:ivar bool ~.save_components: If mask should save components of segmentation or set to 1.\n:ivar bool ~.clip_to_mask: If resulted should be clipped to previous mask (if exist).\n Useful for positive dilate radius\n:ivar bool ~.reversed_mask: If mask should be reversed (region which are not part of segmentation)", "type": "object", "properties": { "dilate": { "$ref": "#/$defs/RadiusType" }, "dilate_radius": { "title": "Dilate Radius", "type": "integer" }, "fill_holes": { "$ref": "#/$defs/RadiusType" }, "max_holes_size": { "title": "Max Holes Size", "type": "integer" }, "save_components": { "title": "Save Components", "type": "boolean" }, "clip_to_mask": { "title": "Clip To Mask", "type": "boolean" }, "reversed_mask": { "default": false, "title": "Reversed Mask", "type": "boolean" } }, "$defs": { "RadiusType": { "description": "If operation should be performed and if on each layer separately on globally", "enum": [ 0, 1, 2 ], "title": "RadiusType", "type": "integer" } }, "additionalProperties": false, "required": [ "dilate", "dilate_radius", "fill_holes", "max_holes_size", "save_components", "clip_to_mask" ] }
- Config:
extra: str = forbid
- Fields:
-
field dilate:
RadiusType
[Required]¶
-
field fill_holes:
RadiusType
[Required]¶
- PartSegCore.mask_create.calculate_mask(mask_description, roi, old_mask, spacing, components=None, time_axis=0)[source]¶
Function for calculate mask base on MaskProperty. If dilate_radius is negative then holes closing is done before erode, otherwise it is done after dilate
- Parameters:
mask_description (MaskProperty) – information how calculate mask
roi (np.ndarray) – array on which mask is calculated
old_mask (Optional[np.ndarray]) – if in mask_description there is set to crop and old_mask is not None then final mask is clipped to this area
spacing (Iterable[Union[float,int]]) – spacing of image. Needed for calculating radius of dilate
components (Optional[List[int]]) – If present inform which components should be used when calculation mask, otherwise use all.
time_axis (Optional[int]) – which axis of array should be treated as time. IF none then none.
- Returns:
new mask
- Return type:
np.ndarray
- PartSegCore.mask_create.fill_2d_holes_in_mask(mask, volume)[source]¶
fill holes in each 2d layer separately
- PartSegCore.mask_create.fill_holes_in_mask(mask, volume)[source]¶
Fil holes in mask. If volume has positive Value then fill holes only smaller than this value
- PartSegCore.mask_create.mp_eq(self, other)[source]¶
Compare two
MaskProperty
.project_info¶
- class PartSegCore.project_info.AdditionalLayerDescription(data, layer_type, name='')[source]¶
Bases:
object
Dataclass
- Variables:
data (numpy.ndarray) – layer data
layer_type (str) – napari layer type
name (str) – layer name
- pydantic model PartSegCore.project_info.HistoryElement[source]¶
Bases:
BaseModel
Show JSON schema
{ "title": "HistoryElement", "type": "object", "properties": { "roi_extraction_parameters": { "title": "Roi Extraction Parameters", "type": "object" }, "annotations": { "anyOf": [ { "type": "object" }, { "type": "null" } ], "title": "Annotations" }, "mask_property": { "$ref": "#/$defs/MaskProperty" }, "arrays": { "default": null, "title": "Arrays" } }, "$defs": { "MaskProperty": { "additionalProperties": false, "description": "Description of creation mask from segmentation\n\n:ivar RadiusType ~.dilate: Select dilation mode.\n:ivar int ~.dilate_radius: Radius of dilation calculate with respect of image spacing.\n:ivar RadiusType ~.fill_holes: Select if fill holes and if it should be done in 2d or 3d.\n:ivar int ~.max_holes_size: Maximum holes size if positive. Otherwise fill all holes.\n:ivar bool ~.save_components: If mask should save components of segmentation or set to 1.\n:ivar bool ~.clip_to_mask: If resulted should be clipped to previous mask (if exist).\n Useful for positive dilate radius\n:ivar bool ~.reversed_mask: If mask should be reversed (region which are not part of segmentation)", "properties": { "dilate": { "$ref": "#/$defs/RadiusType" }, "dilate_radius": { "title": "Dilate Radius", "type": "integer" }, "fill_holes": { "$ref": "#/$defs/RadiusType" }, "max_holes_size": { "title": "Max Holes Size", "type": "integer" }, "save_components": { "title": "Save Components", "type": "boolean" }, "clip_to_mask": { "title": "Clip To Mask", "type": "boolean" }, "reversed_mask": { "default": false, "title": "Reversed Mask", "type": "boolean" } }, "required": [ "dilate", "dilate_radius", "fill_holes", "max_holes_size", "save_components", "clip_to_mask" ], "title": "MaskProperty", "type": "object" }, "RadiusType": { "description": "If operation should be performed and if on each layer separately on globally", "enum": [ 0, 1, 2 ], "title": "RadiusType", "type": "integer" } }, "additionalProperties": false, "required": [ "roi_extraction_parameters", "annotations", "mask_property" ] }
- Config:
extra: str = forbid
arbitrary_types_allowed: bool = True
- Fields:
-
field mask_property:
MaskProperty
[Required]¶
- class PartSegCore.project_info.ProjectInfoBase(*args, **kwargs)[source]¶
Bases:
Protocol
This is base protocol for Project Information.
- Variables:
~.file_path (str) – path to current preceded file
~.image (Image) – project image
~.segmentation (numpy.ndarray) – numpy array representing current project ROI
~.roi_info (ROIInfo) – segmentation metadata
~.mask (Optional[numpy.ndarray]) – mask used in project
~.history (List[HistoryElement]) – history of calculation
errors (str) – information about problems with current project
- PartSegCore.project_info.calculate_mask_from_project(mask_description, project, components=None)[source]¶
Function for calculate mask base on MaskProperty. This function calls
calculate_mask()
with arguments from project.- Parameters:
mask_description (MaskProperty) – information how calculate mask
project (ProjectInfoBase) – project with information about segmentation
components (Optional[List[int]]) – If present inform which components should be used when calculation mask, otherwise use all.
- Returns:
new mask
- Return type:
np.ndarray
.register¶
- PartSegCore.project_info.base_class_dict¶
dict with base class for given type of algorithm, keys are
RegisterEnum
members
.mask_partition_utils¶
This module contains some not fully intuitive algorithm for splitting masked area. They are designed for measurements, but should be also available as segmentation algorithm to allow user to preview, for better intuition how it works and which parameters are good for their purpose.
Better option is to implement this utils as class based with base class AlgorithmDescribeBase
.
Then do not need to manage algorithm parameters in places where it is used.
Both class from this module are designed for spherical mask, but may be useful also for others.
- class PartSegCore.mask_partition_utils.BorderRim[source]¶
Bases:
AlgorithmDescribeBase
This class implement border rim (Annulus like) calculation. For given mask and image spacing it marks as 1 all pixels in given distance from mask border.
https://en.wikipedia.org/wiki/Annulus_(mathematics)
The algorithm is:
For each image voxel calculate distance from background (0 labeled voxels in mask) with respect of voxel size
Select these voxels which are closer than given distance.
This algorithm has following parameters:
distance (float)- Distance
units (Units)- Units
- pydantic model PartSegCore.mask_partition_utils.BorderRimParameters[source]¶
Bases:
BaseModel
Show JSON schema
{ "title": "BorderRimParameters", "type": "object", "properties": { "distance": { "default": 500, "maximum": 1000000.0, "minimum": 0.0, "title": "Distance", "type": "number" }, "units": { "allOf": [ { "$ref": "#/$defs/Units" } ], "default": 2 } }, "$defs": { "Units": { "enum": [ 0, 1, 2, 3 ], "title": "Units", "type": "integer" } }, "additionalProperties": false }
- Config:
extra: str = forbid
- Fields:
-
field units:
Units
= Units.nm¶
- class PartSegCore.mask_partition_utils.MaskDistanceSplit[source]¶
Bases:
AlgorithmDescribeBase
This class contains implementation of splitting mask on parts based on distance from borders. Has two modes or working. It may split on parts with same thickness or same volume..

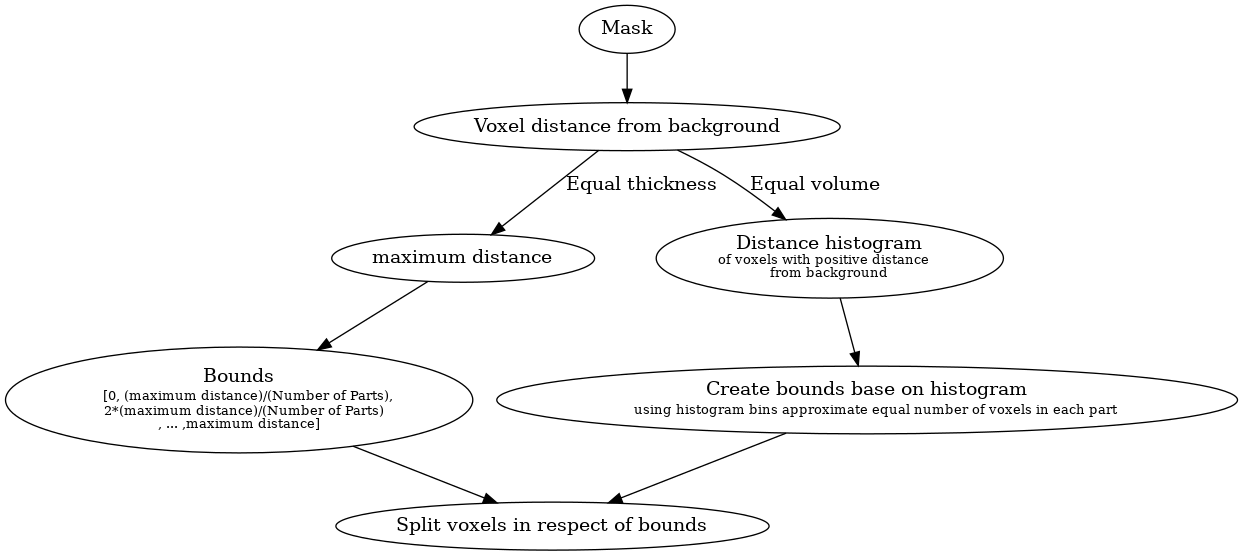

Flow chart of algorithm:
digraph model { "Mask" -> "Voxel distance from background"; "Voxel distance from background" -> "maximum distance"[label=<Equal thickness>] "maximum distance" -> "Bounds" -> "Split voxels in respect of bounds" "Bounds"[label=<Bounds<br /> <FONT POINT-SIZE="10">[0, (maximum distance)/(Number of Parts),<br /> 2*(maximum distance)/(Number of Parts)<br />, ... ,maximum distance]</FONT>>] "Voxel distance from background" -> "Distance histogram"[label=<Equal volume>] "Distance histogram" -> "Create bounds base on histogram" -> "Split voxels in respect of bounds" "Create bounds base on histogram"[label=<Create bounds base on histogram<br /> <FONT POINT-SIZE="10">using histogram bins approximate equal number of voxels in each part</FONT>>] "Distance histogram"[label=<Distance histogram<br /><font point-size="10">of voxels with positive distance <br /> from background </font>>] }This algorithm has following parameters:
num_of_parts (int)- Number of Parts
equal_volume (bool)- Equal Volume, If split should be done in respect of parts volume of parts thickness.
- classmethod get_name()[source]¶
Algorithm name. It will be used during interface generating and in registering to proper
PartSeg.PartSegCore.algorithm_describe_base.Register
.- Return type:
- Returns:
name of algorithm
- pydantic model PartSegCore.mask_partition_utils.MaskDistanceSplitParameters[source]¶
Bases:
BaseModel
Show JSON schema
{ "title": "MaskDistanceSplitParameters", "type": "object", "properties": { "num_of_parts": { "default": 2, "maximum": 1024, "minimum": 1, "title": "Number of Parts", "type": "integer" }, "equal_volume": { "default": false, "description": "If split should be done in respect of parts volume of parts thickness.", "title": "Equal Volume", "type": "boolean" } }, "additionalProperties": false }
- Config:
extra: str = forbid
- Fields:
.roi_info¶
- class PartSegCore.roi_info.BoundInfo(lower: ndarray, upper: ndarray)[source]¶
Bases:
NamedTuple
Information about bounding box
- class PartSegCore.roi_info.ROIInfo(roi, annotations=None, alternative=None)[source]¶
Bases:
object
Object to storage meta information about given segmentation. Segmentation array is only referenced, not copied.
- Variables:
~.roi (numpy.ndarray) – reference to segmentation
bound_info (Dict[int,BoundInfo]) – mapping from component number to bounding box
sizes (numpy.ndarray) – array with sizes of components
annotations (Dict[int, Any]) – annotations of roi
alternative (Dict[str, np.ndarray]) – alternative representation of roi
